HDMI/A Kab.ST-ST 1m Ethernet HDMI HIGH SPEED ETHERNET, 4K
Versandgewicht: |
0,10 kg
|
Artikelgewicht: |
0,09 kg
|
• AOC - Aktives Optisches Kabel: false
• High Speed HDMI for 3D and HDTV resolutions up to 2160p
• Integrated Ethernet Channel for 100MBit Network transmission via HDMI

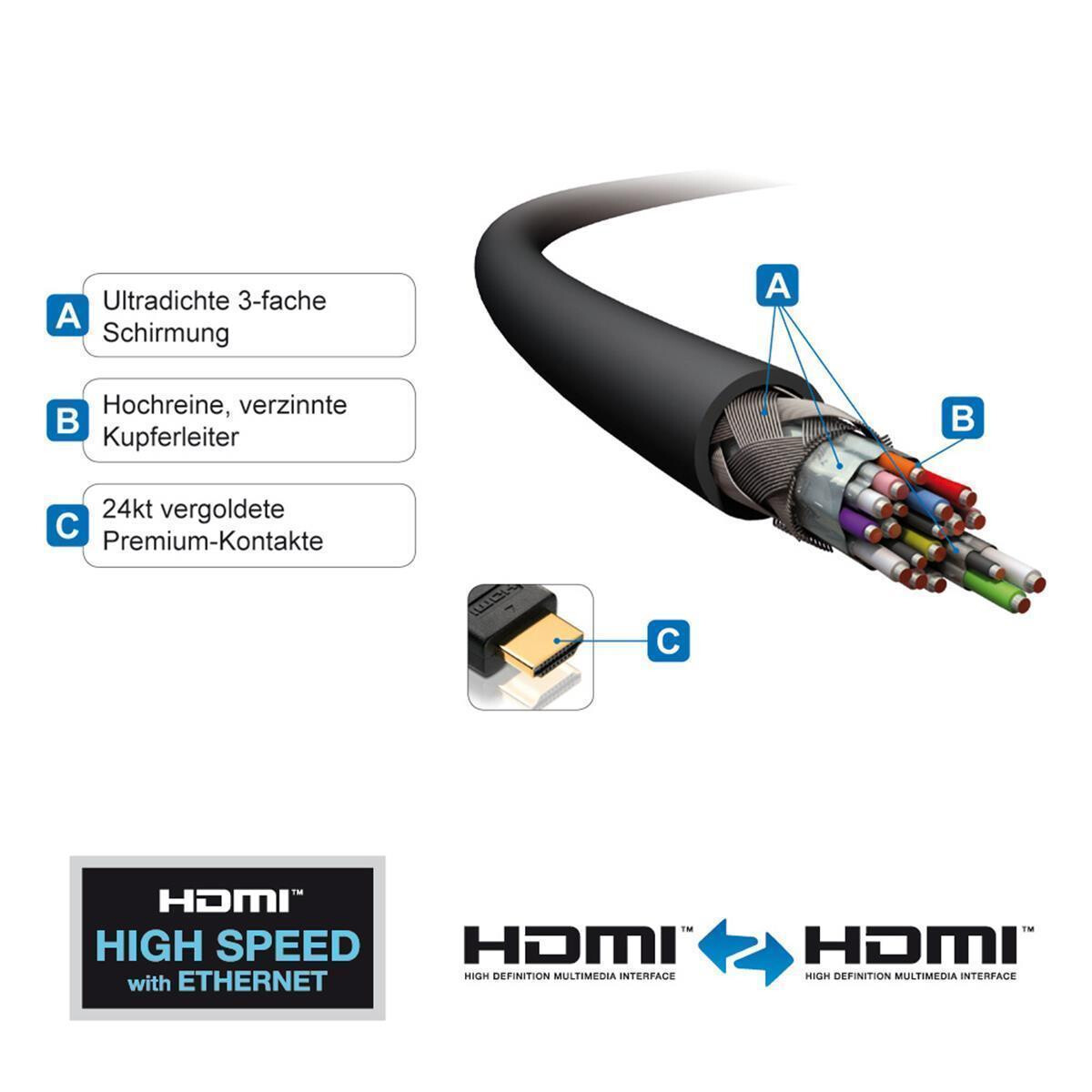

• High purity OFC tinned copper wire and 3-shielding for optimum transmission quality
• Innovative Secure Lock System ™ for HDMI connections
• Especially suitable for professional applications and installations
• connections
• plug material PVC
• Contact material 24 carat gold-plated
• shielding Yes
• connection 1 HDMI Type A connector (19pin)
• dimensions A.1 43.5 x 19.5 x 10.5 (mm)
• connection 2 HDMI Type A connector (19pin)
• dimensions A.2 43.5 x 19.5 x 10.5 (mm)
• contacts 24 carat gold-plated, durable design
• Electric wire
• Type round cable
• Inner conductor material Tinned copper OFC
• AWG AWG28
• number of shieldings 3 times
• screening 1 Aluminum foil (100% leak)
• shielding 2 Aluminum foil (100% leak)
• shielding 3 Braid (100% leak)
• Material outer sheath Highly elastic PVC
• Outer sheath diameter 7.3mm
• signal transmission
• Supported standards HDMI
• transmission modes Digital audio and video signals
• Max. Bandwidth To 3m cable length: 600 MHz || From 5m: 340 MHz
• Transmission rate max. To 3m cable length: 18 Gbit / s || From 5m: 10.2 Gbit / s
• Resolution max. To 3m cable length: 4K / UltraHD / 2160p @ 60Hz, 8bit, 4: 4: 4 or HDR
• over 5m cable: 4K / UltraHD / 2160p @ 30Hz
• Supported color spaces HDR (High Dynamic Range), 16/24 bit RGB / YUV, Deep Color, xvColor ™
• Supported audio standards Audio Return Channel (ARC), Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio ™, DVD Audio, SA-CD
• More standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160p), full HD (1080i / p), HD ready (720i / p), SDTV (480i / p)
