| Dimensions |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight |
Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb) |
| Enclosure material |
SGCC steel |
| Hardware |
| Management interface |
Ethernet In-Band |
| Networking interface |

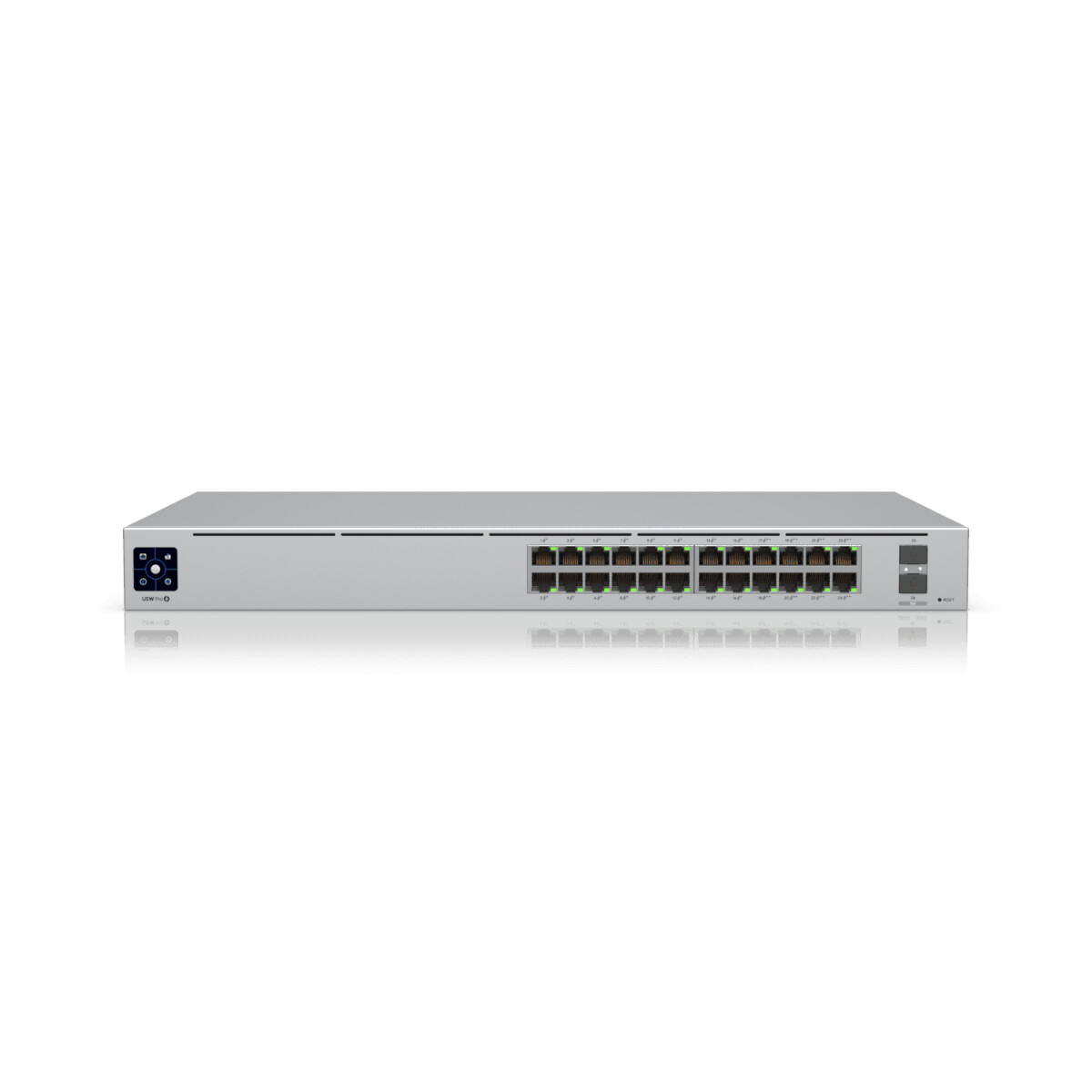

(24) GbE RJ45 ports
(2) 1/10G SFP+ ports |
| PoE interface |
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput |
44 Gbps |
| Switching capacity |
88 Gbps |
| Forwarding rate |
65.472 Mpps |
| Power method |

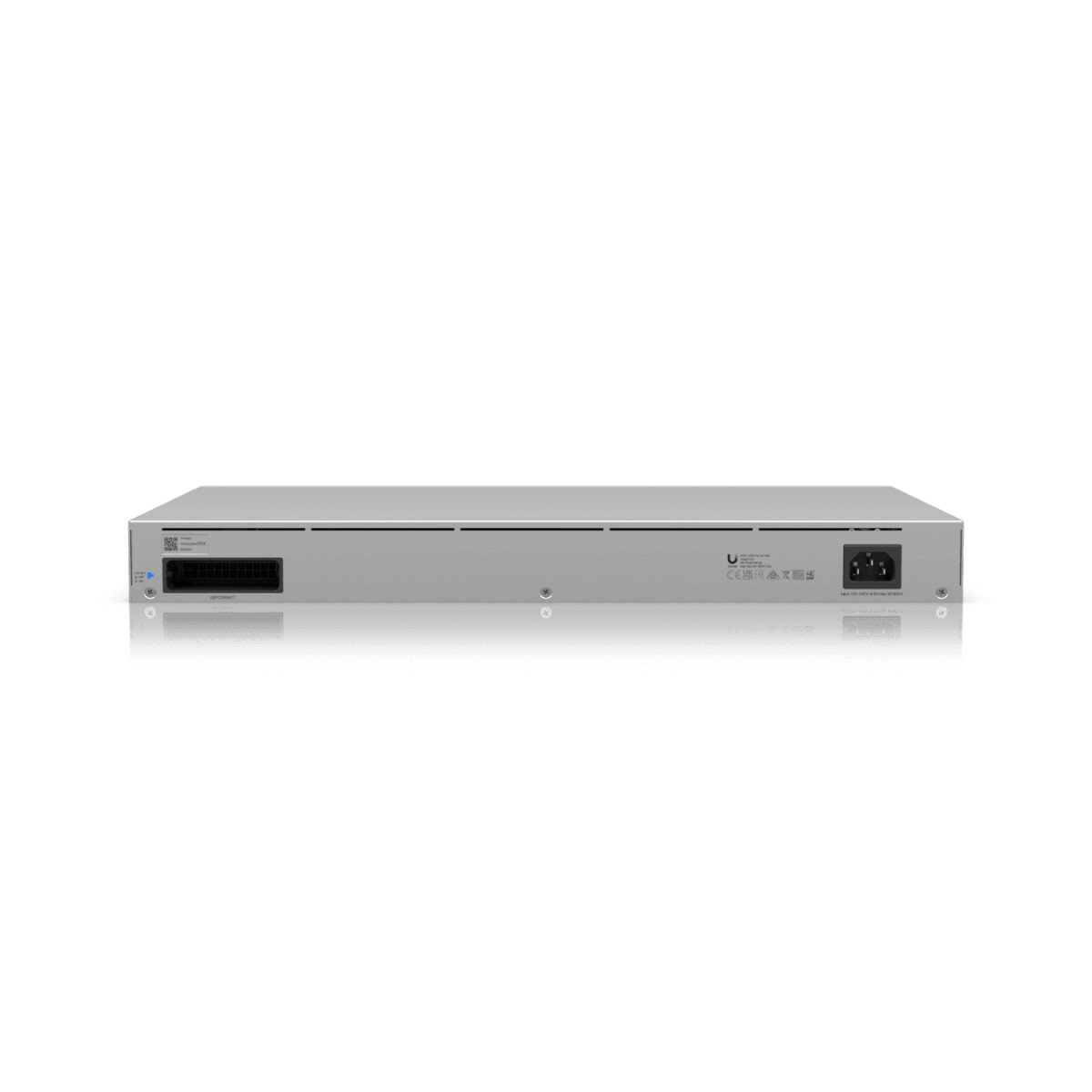

(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A |
| Power supply |
AC/DC, internal, 450W |
| Supported voltage range |
100—240V AC |
| Max. power consumption |
50W (Excluding PoE output) |
| Total available PoE |
400W |
| Max. PoE wattage per port by PSE |
PoE+: 32W
PoE++: 64W |
| Voltage range PoE mode |
PoE: 44—57V
PoE+: 50—57V |
| ESD/EMP protection |
Air: ± 16kV, contact: ± 12kV |
| LCM display |
(1) 1.3" touchscreen |
| Button |
Factory reset |
| Shock and vibration |
ETSI300-019-1.4 Standard |
| Ambient operating temperature |
-5 to 40° C (23 to 104° F) |
| Ambient operating humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Switching Features |
| Layer 2 features |
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
| Layer 3 features |
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs |
| LEDs |
| System |
Status |
| Ethernet |
PoE
Speed/link/activity |
| SFP+ |
Link/activity |
| RPS |
Status |
| Application Requirements |
| UniFi Network |
Version 5.10.5 and later |
